Inverter
PX 1012 CIP

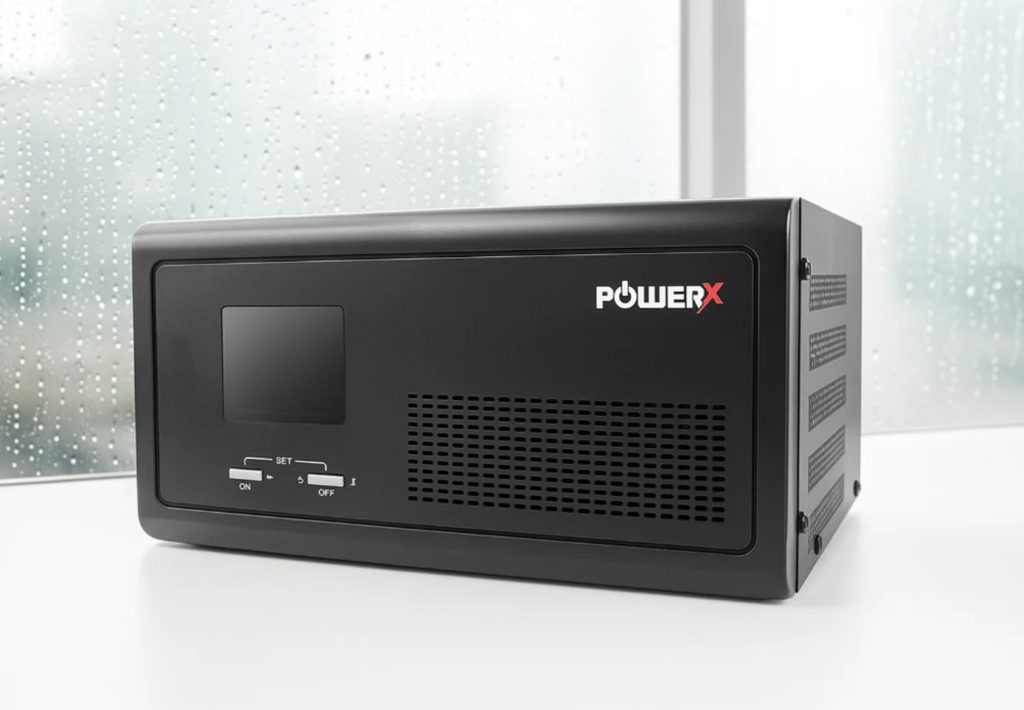

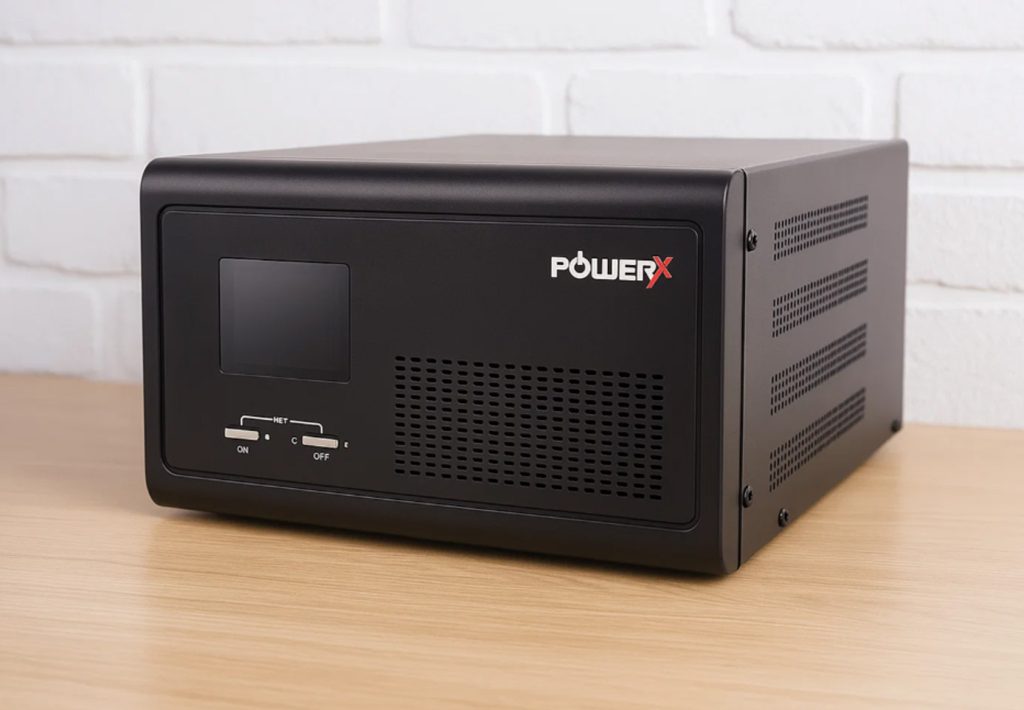

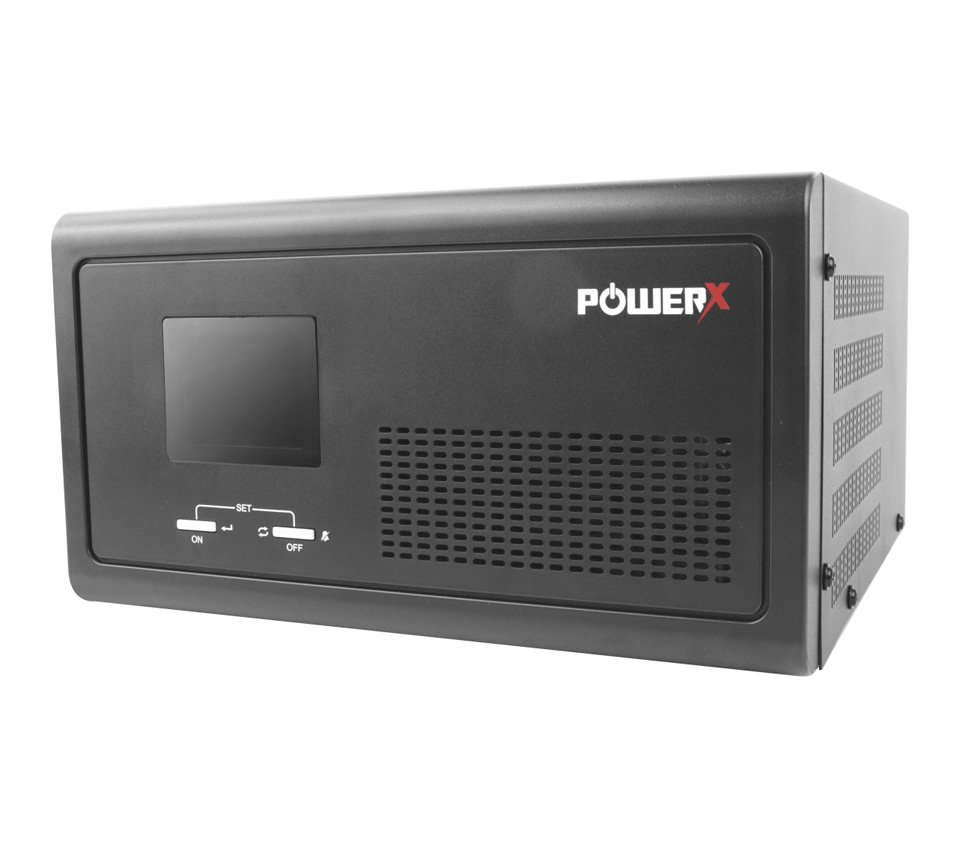

The PX1012 CIP is a professional-grade pure sine wave inverter UPS delivering 1000W of clean, stable power with built-in voltage stabilization. Designed for higher-demand applications, it features an intuitive LCD display, intelligent multi-protection system, and is perfectly suited for rack servers and critical IT environments.
At a glance
- Output: Pure sine wave
- Capacity: 1000 W
- Battery: 12V
- Intelligent charging & LCD monitoring
Pure sine wave output for all loads
Intelligent multi-stage charging
DSP digital control technology
Flexible charging current & voltage settings
Flexible & intelligent power backup solution
PX 1012 CIP combines a pure sine wave inverter with a powerful intelligent charger. Suitable for a wide range of loads including motors, computers, and home electronics, and can also work as an off-grid solar inverter with optional MPPT.
Key Features Details
Battery temperature compensation and three-stage charging extend battery life and shorten recharge time.
DSP Digital Control & Pure Sine Wave Output
Advanced DSP control ensures stable and precise pure sine wave output, compatible with resistive, inductive, and rectified loads.
Flexible Charging & Energy Saving
Adjustable charge current (max. 60 A), settable no-load shutdown, and energy-saving modes extend battery life and reduce power consumption.
Specification
| Specification | Details |
|---|---|
| Capacity | 1000 W |
| Battery | 12 V |
| Output Waveform | Pure sine wave |
| Control | DSP digital control technology |
| Charge Current | Max. 60 A (adjustable) |
| Efficiency | Max. 95% (mains), Max. 80% (inverter) |
| Protections | Short circuit, overload, overcharge, undervoltage, overtemperature, low battery |
| Modes | No-load shutdown, ECO mode |
| Monitoring | LCD & buzzer interface |
| Dimensions (mm) | 293 × 280 × 160 |
| Optional Modules | MPPT (solar), DC module |
